Cutting a test blank of a helical gear

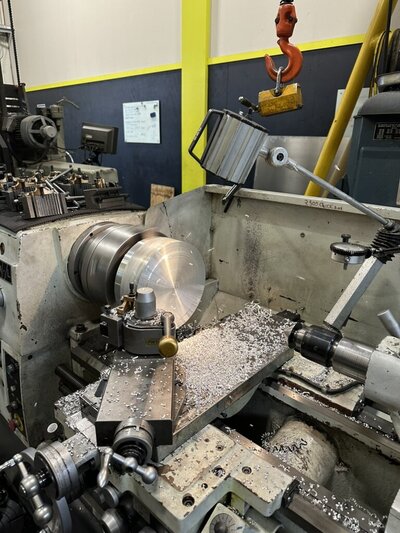

Taking heavy roughing passes on the Geminis 1000, .400 depth of cut .800 off the diameter

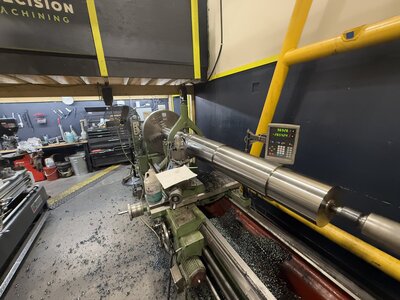

Shaft concentricity, alignment, and set up

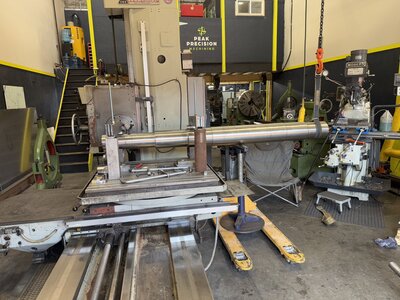

Peak precision running their new horizontal boring mill

Thermal spray shaft repair and cylindrical grinding

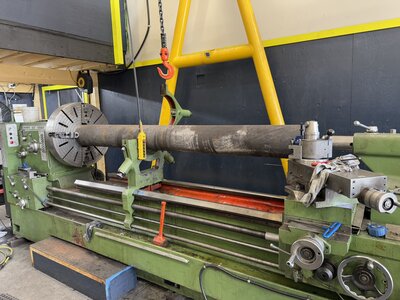

Before & After: Impeller Balancing

after starts at 1 minute 30 seconds

Dialling in stationary seal to within .0002 to ensure parallelism to rotating seal.

Before and after clips: dial in of outside mechanical seal to 0.0015 concentricity and parallelism, to ensure full life span of mechanical seal

Broaching key slot in coupling for a hydro power plant bridge.

Cutting 15” OD gaskets with our Allpax M3 gasket cutter

Facing passes on 1018 mild steel

"if the chip is long, the feed is wrong. If the chip is small, you're on the ball"

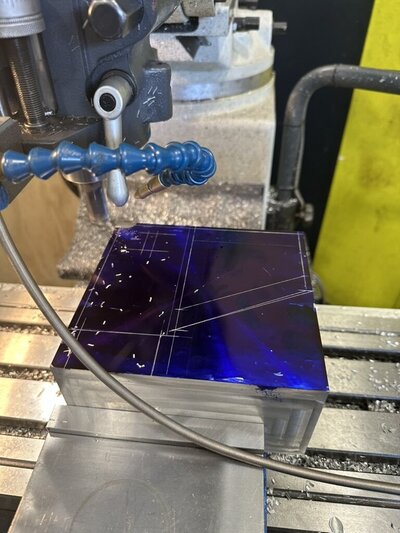

Outside seal plate on starrett surface plate for parallelism inspection, measured at three tenths .0003” after flycutting.

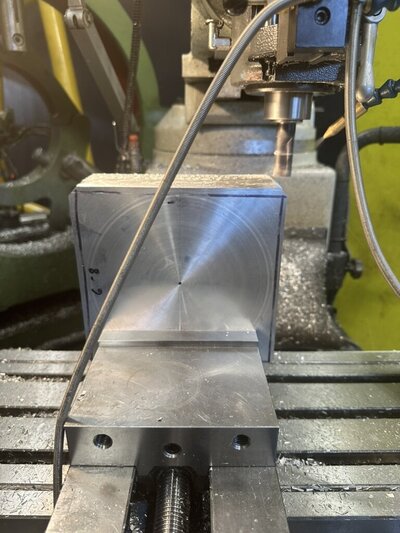

Fly cutting outside seal plate face

Reaming damaged bolt holes on a outside mechanical seal flange plate

Cutting 3/8X16 bolt threads from SV-90 stainless steel

Turning bronze upper wear ring for an Armstrong number 8 seal plate

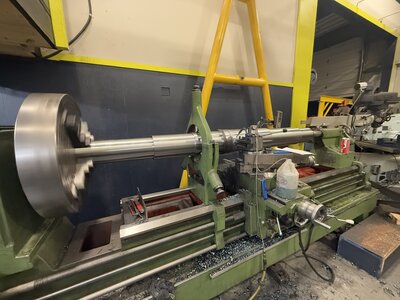

Replacement pump shaft extension fabrication and alignment process. Running within six ten thousandths of an inch .0006

Grinding angle washers on mag sine plate to 1 degree 26 minutes and 18 seconds for customers drive hub

Surface grinding drive shim to final dimension of .3947” within .0002” parallelism

Parting off using the turret mill in preparation for the surface grinder for final dimension

machining threaded spline drive shaft auto stops set for thread length of 1.060” and final major dimension of .750”

Our sand blasting station, 35cfm with #80 garnet makes quick work of paint and rust removal

Machining slots in castellated nut

Bearing cup resizing
